2 Axis Ultrasonics
Gill has over twenty years of experience in the field of ultrasonic air flow measurement and offers the most extensive range of ultrasonic wind-speed and direction sensors on the market today. Rugged construction and the elimination of moving parts removes the need for routine maintenance, making Gill sensors ideal for operation in all environmental conditions.
For sales and support for all Gill ultrasonics and to determine which instrument best suits your application, please contact PP Systems to speak to a Gill Products Specialist. We look forward to being of assistance.
Product Features
- Connects RS232/RS422/RS485 sensor outputs to Ethernet 10/100 Base-T networks
- Full PC with low power ARM processor
- 4 gb SD flash memory data storage
- Easy to use
- Highly-compatible web-browser interface with most devices
- 20 Hz intelligent sensor serial data input
- Plug & play – No programming knowledge required
- Extremely cost effective
Product Features
- Wind-speed & direction sensor
- 0-60 m/s (116 knots) wind speed
- 0-359° wind direction
- NMEA output
- Low power consumption
- Fast startup
- Solid state – maintenance free
- Corrosion free
- Analog outputs (optional)
Product Features
- Wind-speed & direction sensor
- 0-75 m/s (146 knots) wind speed
- 0-359° wind direction
- NMEA output
- Low power consumption
- Fast startup
- Solid state – maintenance free
- Corrosion free
- Analog outputs (optional)
WindSonic™ SDI-12
The WindSonic™ SDI-12 provides wind speed and direction data via an SDI-12 output. Features include lower power consumption <2mA in standby and a vector or scalar rolling average feature providing 1 min average and 1 min max speed with associated direction. With a robust, corrosion-free polycarbonate housing, this small, lightweight wind sensor is particularly suited to meteorological and hydrological based installations. Ths low-cost anemometer has no moving parts, offering maintenance-free operation in a wide range of applications.
Product Features
- Wind-speed & direction sensor
- 0-60 m/s (116 knots) wind speed
- 0-359° wind direction (no dead band)
- SDI-12 V1.3 compatible
- Low power consumption
- Solid state – maintenance free
- Corrosion free
- Rolling average facility
- Multiple sensors (up to 10)
- IP66-rated stainless steel construction
Product Features
- Compact wind-speed & direction sensor
- Hard-anodized aluminum-alloy construction
- -40° operation (with optional heating)
- IP66 rated
- Vibration BS EN 60945:2002
- Impact resistance to UL2218 Class 1
- Solid state – maintenance free
- NMEA output
- Analog output (optional)
Product Features
- 0-65 m/s wind speed
- 0-359º wind direction
- Stainless-steel construction
- Lloyds Register Type approved
- Averaging/gusts to WMO guidelines
- De-icing system (optional)
- Analog output (optional)
Product Features
- 0-65 m/s wind speed
- 0-359º wind direction
- IP66-rated stainless-steel construction
- Averaging/gusts to WMO guidelines
- De-icing system (optional)
- Base mounts/cable exit (optional)
- Analog outputs (optional)
WindObserver™ 70
The WindObserver™ 70 monitors wind speeds up to 70 m/s (157mph), offers an optional high-power anti-icing heating system and is available with a range of mounting and connection options.
The WindObserver 70 has been accepted for service by the FAA and CAA for reporting of surface wind in airport applications.
Product Features
- Accepted by FAA and CAA for airport applications
- Heating power 7A @24VAC or DC (1W/cm2)
- 0-70 m/s wind-speed range
- 0-359º wind-direction range (no dead band)
- Calibration traceable to national standards
- IP66-rated stainless-steel construction
- Averaging/gusts to WMO guidelines
- Base mounts/cable exit (optional)
WindObserver™ 75
Product Features
- Heating Power 7A @ 24VAC or DC (1W/cm²)
- 0-75m/s wind speed
- 0-359º wind-direction range (no dead band)
- Wind-speed accuracy for turbine control ±1% within ±25º of datum
- Calibration traceable to NAMAS standards
- IP66-rated stainless-steel housing
- Connector or cable exit options
- Customer base mounts (optional)
Product Features
- Heating power 7A @ 24VAC or DC (1 W/cm²)
- 0-90 m/s wind-speed range
- Calibrated in Merlin Wind Tunnel
- Calibration traceable to national standards
- IP66-rated stainless-steel housing
- Connector or cable exit options
- Averaging/gusts to WMO guidelines
- Customer base mounts (optional)
Product Features
- ATEX and IECEx certification
- Low-voltage or mains-voltage power supplies
- Wind-speed range 0-75 m/s
- 0-359o wind-direction range (no dead band)
- NMEA output
- Isolated power supply
- Stainless-steel construction
- Reduced offshore maintenance costs
- Factory calibrated for life
Wind Displays

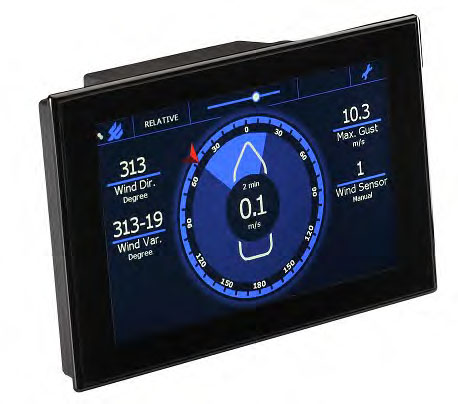

The OMC-140 Multifunctional TFT Display can be used wherever you need to visualize your critical measurement information on a dedicated instrument. When the presentation of wind information (wind speed and direction, gust, and variation, true or relative) or indication of other meteorological parameters (temperature, humidity, barometric pressure, visibility and cloud base) is required, the OMC-140 is the ideal instrument.
The multifunctional character of the OMC-140 allows the unit to be supplied for additional applications such as GPS and gyro, speed log indication, Echo-sounder display, etc.
Data Viewing
View your data at a true viewing angle of 170⁰ on an 8.5″ industrial-grade LCD with a long-life, low-power LED backlight.
Multiple Dimming Options
- Manual via the slide bar
- Automatically by means of a light-sensitive element
- Centrally through DDC
Product Features
- 8,5” Super wide, 170° viewing angle LCD with long-life low-power LED backlight
- Touchscreen display
- Power supply between 90 and 250 Vac
- 24 VDC version available (part no. OMC-140-24)
- Two RS422 NMEA inputs (status LED available)
- User-selectable meteorological or marine display options available
- Alarm handling, high and high-high, audible and visible, acceptance possible (conform BAM)
- Multiple dimming options
- Three slots available for additional I/O and functionality
- Memory card slot, logger functionality (MESCAQ requirement)
- RJ45 LAN connection, NMEA over Ethernet conform IEC 61162-450
- Suitable for 144×144 instrument replacement (portrait or landscape)
- DNV-GL Type approval certificate: TAA00001B5
- CCS Type approval certificate: LT18T00001
