3 Axis Ultrasonics

Gill has more than twenty years of experience in the field of ultrasonic air flow measurement and offers the most extensive range of ultrasonic wind speed and direction sensors on the market today. Rugged construction and the elimination of moving parts eliminates the need for routine maintenance, making Gill’s sensors ideal for operation in all environmental conditions.

For sales and support on all Gill ultrasonics and to determine which instrument best suits your application, please contact PP Systems to speak to a Gill Products Specialist.  We look forward to being of assistance.

WindMaster™

3-axis ultrasonic anemometer

The WindMaster™ is a precision 3D anemometer, offering sonic temperature, speed of sound and U, V & W vector outputs at 20 Hz (32 Hz option). This 3D anemometer has an aluminum/carbon fiber construction and will monitor 0-50 m/s (0-100 mph) wind speed.

Data SheetRequest a Quote

Product Features

  • Precision 3-axis sonic anemometer
  • 20 Hz output rate
  • 0-50 m/s wind speed
  • 0-359° wind direction
  • U, V, W vector outputs
  • Sonic temperature output
  • Aluminum/carbon fiber construction
  • Custom calibration (optional)

WindMaster™ Pro

3-axis ultrasonic anemometer

The WindMaster™ Pro uses the same precision 3D measurement technology as the standard WindMaster, with an increased wind measurement range of 0-65 m/s (0-145 mph), 32 Hz output as standard and a robust stainless-steel external construction.

Data SheetRequest a Quote

Product Features

  • Precision 3-axis research anemometer
  • 32 Hz output rate
  • 0-65 m/s wind speed
  • 0-359o wind direction
  • U, V, W vector outputs
  • Sonic temperature output
  • Stainless-steel construction
  • Custom calibration (optional)

WindMaster™ HS

3-axis horizontal-head ultrasonic anemometer

The Gill WindMasterHS provides all of the advantages of the scientific-grade HS measurement head design with the ease and feature set from the Gill WindMaster range. The horizontal head design allows for highly-accurate vertical flow analysis with minimal interruption from the anemometer geometry.

Data SheetRequest a Quote

Product Features

  • Precision 3-axis sonic anemometer
  • Horizontal head for minimal flow disturbance
  • Integral electronics
  • 0-45 m/s wind speed
  • Stainless-steel construction
  • 32 Hz output rate
  • Sonic temperature output
  • U, V, W vector outputs

WindMaster™ RA

3-axis right-angled ultrasonic anemometer

The Gill WindMasterRA is a precision 3D anemometer based on the popular WindMaster, also offering sonic temperature, speed of sound and U, V & W vector outputs at 20 Hz (32 Hz option), with a right-angled head design allowing more precise placement for unique installation requirements. This 3D anemometer has an aluminum/carbon fiber construction and will monitor 0-50 m/s (0-100 mph) wind speed.

Data SheetRequest a Quote

Product Features

  • Precision 3-axis research anemometer
  • 20 Hz output rate
  • 0-50 m/s wind speed
  • 0-359° wind direction
  • U, V, W vector outputs
  • Sonic temperature output
  • Aluminum/carbon fiber construction
  • Custom calibration (optional)

R3-50™

R3-50 3-axis ultrasonic anemometer

The R3-50™ is a professional 3D ultrasonic anemometer, ideal for Eddy Covariance analysis and the study of turbulent air flows. R3-50 has a wind measurement range of 0-45 m/s, offers sonic temperature, speed of sound and U, V & W vector outputs, at an output rate of 50 Hz.

Data SheetRequest a Quote

Product Features

  • 3-axis research anemometer
  • 50 Hz output rate
  • 0-45 m/s wind speed
  • 0-359o wind direction
  • U, V, W vector outputs
  • Sonic temperature output
  • Aluminum/carbon fiber construction
  • Custom calibration (standard)

R3-100™

R3-100 3-axis ultrasonic anemometer

The R3-100™ utilizes the same advanced wind measurement technology and robust aluminum/carbon fiber construction as the R3-50, with a faster data output rate of 100 Hz.

Data SheetRequest a Quote

Product Features

  • 3-axis research anemometer
  • 100 Hz output rate
  • 0-45 m/s wind speed
  • 0-359o wind direction
  • U, V, W vector outputs
  • Sonic temperature output
  • Aluminum/carbon fiber construction
  • Custom calibration (standard)

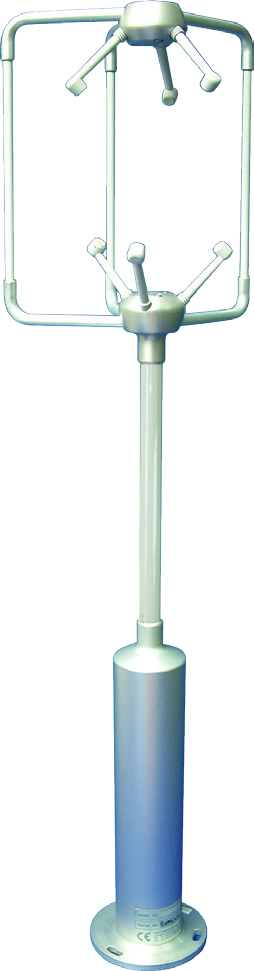

R3A-100™

3-axis ultrasonic anemometer asymmetric head configuration

The R3A-100™ is a precision anemometer designed for scientific research applications and features an asymmetric sensor head configuration, which allows for more accurate measurement of horizontal flows with minimum interruption of the prevailing wind.

This 3D ultrasonic anemometer monitors wind speeds up to 45 m/s and features a fast 100 Hz sampling rate. The R3A-100 comes standard with 7 analogue outputs (U, V, W; SOS; PRT plus 2 analog outputs) and is available with an optional inclinometer.

Data SheetRequest a Quote

Product Features

  • Asymmetric 3-axis research anemometer
  • 100 Hz output rate
  • 0-45 m/s wind speed
  • 0-359o wind direction
  • U, V, W vector outputs
  • Sonic temperature output
  • Aluminum/carbon fiber construction
  • Custom calibration (standard)

HS-50™

3-axis horizontal-head research anemometer

The HS-50™ is a precision ultrasonic anemometer that is ideal for scientific research studies. The horizontal head design allows for highly accurate vertical flow analysis with minimal interruption from the anemometer geometry. The HS-50 will monitor wind speeds of 0-45 m/s and has an update rate of 50 Hz.

Data SheetRequest a Quote

Product Features

  • Precision 3-axis research anemometer
  • Horizontal head for minimal flow disturbance
  • 50 Hz output rate
  • 0-45 m/s wind speed
  • U, V, W vector outputs
  • Stainless steel construction
  • 0-359o wind direction

HS-100™

HS-100 3-axis horizontal-head research anemometer

The HS-100™ uses the same robust stainless-steel horizontal-head design as the HS-50, with a faster update rate of 100 Hz. This anemometer is ideal for precision scientific research applications including eddy covariance analysis.

Data SheetRequest a Quote

Product Features

  • Precision 3-axis research anemometer
  • 100 Hz output rate
  • 0-45 m/s wind speed
  • 0-359o wind direction
  • U, V, W vector outputs
  • Horizontal head for minimal flow disturbance
  • Stainless steel construction
