Spectrometer Based Systems

UniSpec-SC (Single Channel)

For Leaf Level Reflectance

UniSpec-SC Spectral Analysis System

Common System Configuration:

UNI007 UniSpec-SC (310-1100 nm)
UNI400 Standard Bifurcated Fiber Optic
UNI500 Standard Leaf Clip
UNI420 Reference Standard

Optional accessories include a mini fiber optic and mini leaf clip for small vegetation (i.e. pine needles), fiber optics and FOV lens, reference standards, external battery packs, etc.

Data SheetREQUEST A QUOTE

UniSpec-DC (Dual Channel)

For Remote Sensing

UniSpec-DC Spectral Analysis System

Common System Configuration:

UNI021 UniSpec-DC (310-1100 nm)
UNI684 Straight Fiber Optic with custom ferrule
UNI688 Hypo Tube
UNI686 Straight Fiber Optic with custom ferrule
UNI435 Cosine Receptor

Optional accessories are also available including fiber optics and FOV lens, reference standards, external battery packs, etc.

Data SheetREQUEST A QUOTE

Skye Data Loggers and Custom Sensors

Which system is best for me?

Step 1

Select the SpectroSense2+ or DataHog2 based system.

Step 2

Scroll down to the application of interest.

Step 3

Select the appropriate 2 or 4 channel sensors.

SpectroSense2+ System

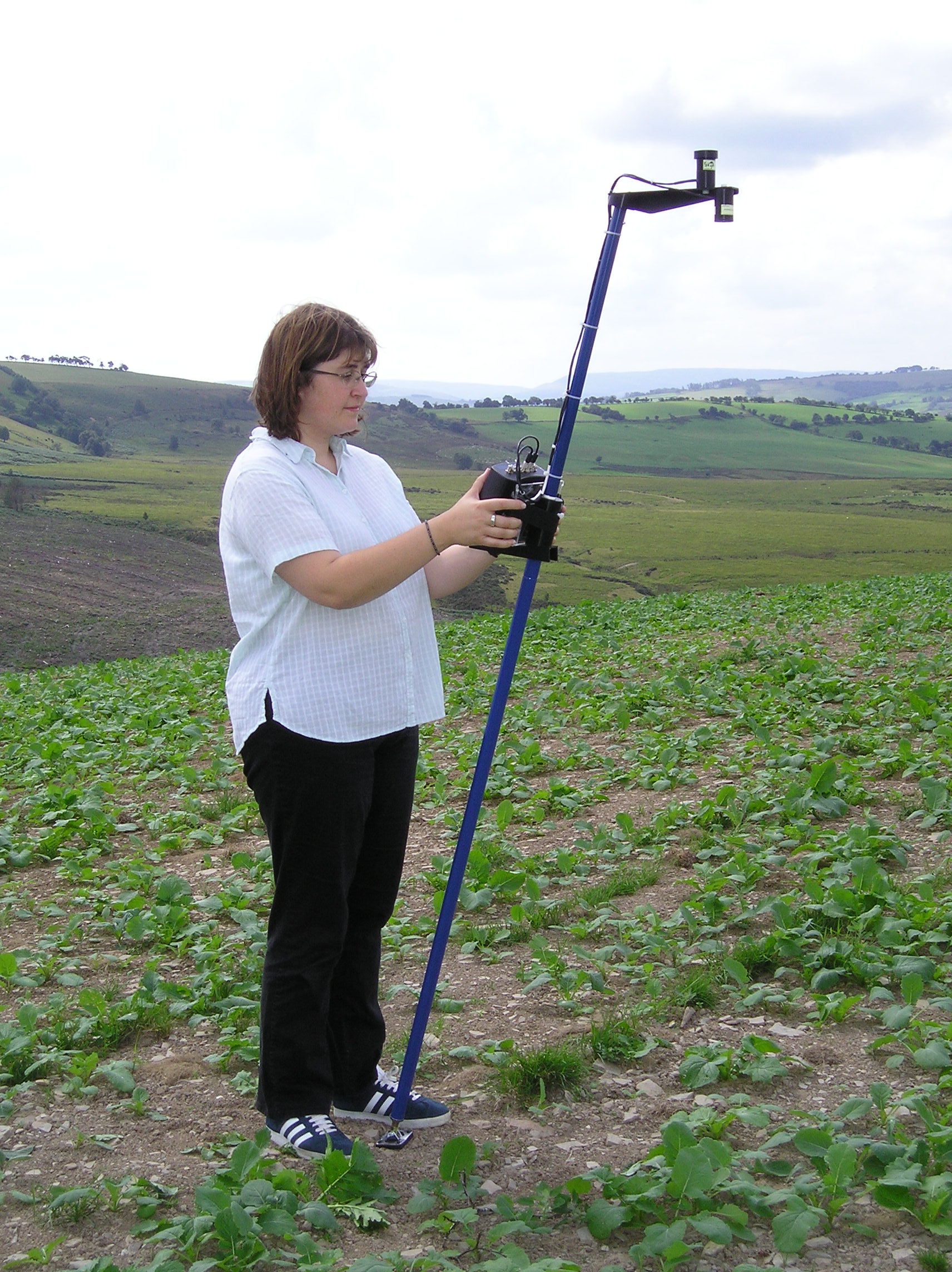

NDVI measurements with the Skye SpectroSense 2+ Meter and light sensors
  • SKL925 SpectroSense2 + Meter/logger with GPS
  • SKL910 NDVI Pole & Carrying Case

SpectroSense2+ Data Sheet

DataHog2 System

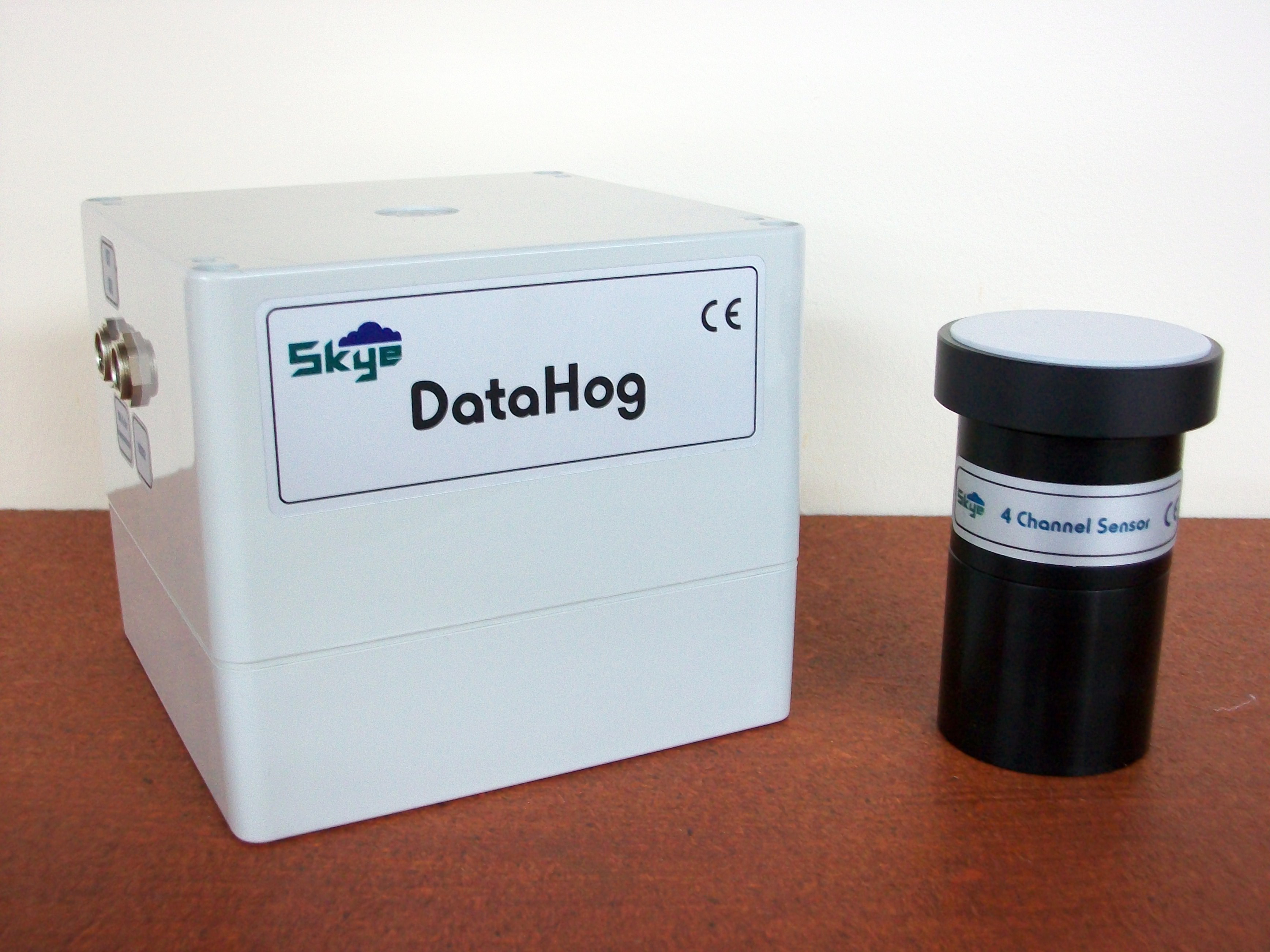

DataHog 2 Data Logger from Skye Instruments
  • SDL5200 DataHog2+ Datalogger
  • SKM226/NDVI Pole Mount for Sensors
  • SKM225 Pole Mount for Data Hog

DataHog2 Data Sheet

Application

NDVI

For weed cover mapping or crop density

NDVI Data Sheet

SpectroSense2+ System

Sensor Requirements

SKR1800/SS2
2 Channel Sensor (2 Each)
Channel 1- 650 nm (10 nm bandwidth)
Channel 2 – 800 nm (10 nmbandwidth)
2 Channel Sensor Data Sheet

DataHog2 System

Sensor Requirements

SKR1800/I
2 Channel Sensors (2 Each)
Channel 1- 650 nm (10 nm bandwidth)
Channel 2 – 800 nm (10 nm bandwidth)
2 Channel Sensor Data Sheet

SKR1860/I
2 Channel Sensors (2 Each)
Channel 1- 650 nm (10 nm bandwidth)
Channel 2 – 800 nm (10 nm bandwidth)
2 Channel Sensor Data Sheet

Application

SpectroSense2+ System

Sensor Requirements

SKR1800/SS2
2 Channel Sensor (2 Each)
Channel 1- 531 nm (5 or 10 nm bandwidth)
Channel 2 – 570 nm (5 or 10 nm bandwidth)
2 Channel Sensor Data Sheet

DataHog2 System

Sensor Requirements

SKR1800/I
2 Channel Sensors (2 Each)
Channel 1- 531 nm (5 or 10 nm bandwidth)
Channel 2 – 570 nm (5 or 10 nm bandwidth)
2 Channel Sensor Data Sheet

SKR1860/I
2 Channel Sensors (2 Each)
Channel 1- 531 nm (5 or 10 nm bandwidth)
Channel 2 – 570 nm (5 or 10 nm bandwidth)
2 Channel Sensor Data Sheet

Application

Ground Truth – AVHRR Satellite

AVHRR Data Sheet

SpectroSense2+ System

Sensor Requirements

SKR1800/SS2
2 Channel Sensor (2 Each)
Channel 1- 570-680 nm
Channel 2 – 725-1050 nm

2 Channel Sensor Data Sheet

DataHog2 System

Sensor Requirements

SKR1800/I
2 Channel Sensors (2 Each)
Channel 1- 570-680 nm
Channel 2 – 725-1050 nm
2 Channel Sensor Data Sheet

SKR1860/I
2 Channel Sensors (2 Each)
Channel 1- 570-680 nm
Channel 2 – 725-1050 nm
2 Channel Sensor Data Sheet

Application

Ground Truth – Landsat Satellite

Landsat Data Sheet

SpectroSense2+ System

Sensor Requirements

SKR1850/SS2
4 Channel Sensor (2 Each)
Channel 1- 450-500 nm
Channel 2 – 500-600 nm
Channel 3 – 650-700 nm
Channel 4 – 775-900 nm
4 Channel Sensor Data Sheet

DataHog2 System

Sensor Requirements

SKR1850/I
4 Channel Sensor (2 Each)
Channel 1- 450-500 nm
Channel 2 – 500-600 nm
Channel 3 – 650-700 nm
Channel 4 – 775-900 nm
4 Channel Sensor Data Sheet

SKR1860/I
4 Channel Sensor (2 Each)
Channel 1- 450-500 nm
Channel 2 – 500-600 nm
Channel 3 – 650-700 nm
Channel 4 – 775-900 nm
4 Channel Sensor Data Sheet

Application

Ground Truth – MODIS Satellite

MODIS Data Sheet

SpectroSense2+ System

Sensor Requirements

SKR1850/SS2
4 Channel Sensor (2 Each)
Channel 1- 450-480 nm
Channel 2 – 540-565 nm
Channel 3 – 625-680 nm
Channel 4 – 835-890 nm
4 Channel Sensor Data Sheet

DataHog2 System

Sensor Requirements

SKR1850/I
4 Channel Sensor (2 Each)
Channel 1- 450-480 nm
Channel 2 – 540-565 nm
Channel 3 – 625-680 nm
Channel 4 – 835-890 nm
4 Channel Sensor Data Sheet

SKR1860/I
4 Channel Sensors (2 Each)
Channel 1- 650 nm (10 nm bandwidth)
Channel 2 – 800 nm (10 nm bandwidth)
SKR1860 data sheet

An interesting link for researchers interested in optical sampling: SpecNet Spectral Network.
